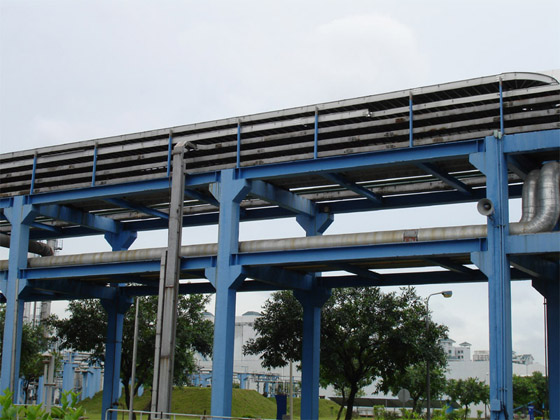

一、電纜橋架的核心知識

1、 Core knowledge of cable tray

類型與結構

Type and Structure

梯級式橋架：通風散熱好，適用于大直徑電纜或高負載場景（如電力系統）。

Cascade bridge: with good ventilation and heat dissipation, suitable for large-diameter cables or high load scenarios (such as power systems).

托盤式橋架：底部為平板結構，適合通信電纜、弱電系統或輕型布線。

Tray type cable tray: The bottom is a flat structure, suitable for communication cables, weak current systems, or lightweight wiring.

槽式橋架：全封閉設計，防塵、防干擾，常見于數據中心或精密設備環境。

Slot type bridge: fully enclosed design, dustproof and anti-interference, commonly used in data centers or precision equipment environments.

組合式橋架：模塊化設計，靈活適應復雜布線需求。

Modular cable tray: modular design, flexible to adapt to complex wiring requirements.

材質選擇

Material selection

鍍鋅鋼：經濟實用，需注意潮濕環境下的防腐處理。

Galvanized steel: economical and practical, but attention should be paid to anti-corrosion treatment in humid environments.

鋁合金：輕便耐腐蝕，適合化工、海洋等腐蝕性環境。

Aluminum alloy: lightweight and corrosion-resistant, suitable for corrosive environments such as chemical and marine industries.

不銹鋼：高強度、耐高溫，成本較高，用于特殊工業場景。

Stainless steel: high strength, high temperature resistance, high cost, used in special industrial scenarios.

玻璃鋼：絕緣性好，抗酸堿，適用于戶外或強電磁干擾區域。

Fiberglass: Good insulation, acid and alkali resistance, suitable for outdoor or strong electromagnetic interference areas.

載荷等級

Load level

根據電纜重量和數量選擇橋架載荷（輕型、中型、重型），需預留20%余量。

Select bridge load (light, medium, heavy) based on cable weight and quantity, with a 20% margin reserved.

二、設計規范與標準

2、 Design specifications and standards

標準

Chinese standards

《CECS 31:2017 鋼制電纜橋架工程設計規范》

CECS 31:2017 Design Specification for Steel Cable Tray Engineering

《/T 10216-2013 電控配電用電纜橋架》

/T 10216-2013 Cable trays for electrical control and distribution

國際參考

International reference

IEC 61537: 國際電纜橋架安裝標準

IEC 61537:  International Cable Tray Installation Standard

NEMA VE1: 北美橋架設計規范

NEMA VE1:  North American Bridge Design Specification

三、安裝要點

3、 Installation points

路徑規劃

Path planning

避開熱源、振動源，與管道保持距離（如與燃?xì)夤芷叫小?.3m，交叉≥0.5m）。

Avoid heat and vibration sources, and maintain a safe distance from the pipeline (such as parallel to the gas pipe ≥ 0.3m, crossing ≥ 0.5m).

支撐間距

Support spacing

水平安裝：1.5-3m（根據載荷調整）；垂直安裝：≤2m。

Horizontal installation: 1.5-3m (adjusted according to load); Vertical installation: ≤ 2m.

接地要求

Grounding requirements

全長少2處與接地干線連接，鍍鋅橋架可利用本體作為接地線（需確?？缃狱c(diǎn)導電性）。

At least 2 points along the entire length should be connected to the grounding main line, and the galvanized bridge can be used as a grounding wire (ensuring the conductivity of the crossing point).

四、常見問題與解決方案

4、 Common Problems and Solutions

腐蝕問題

Corrosion issue

潮濕環境選鋁合金或熱浸鍍鋅橋架，定期涂防腐涂料。

Choose aluminum alloy or hot-dip galvanized cable trays in humid environments, and regularly apply anti-corrosion coatings.

電纜過熱

Cable overheating

增加橋架通風孔或改用梯級式設計，避免多層電纜緊密堆積。

Add ventilation holes to the cable tray or adopt a stepped design to avoid the tight stacking of multiple layers of cables.

振動導致松動

Vibration causes looseness

在設備附近使用減震支架，螺栓連接處加裝彈簧墊圈。

Use shock-absorbing brackets near the equipment and install spring washers at the bolted connections.
